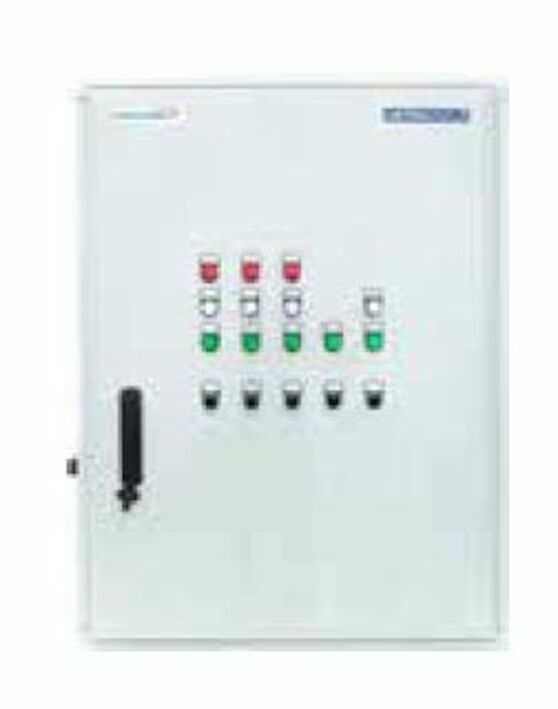

Connect & Go Commercial – SMART

Control and power devices for up to 3 pump sets with soft start and control devices for balancing tank. The panel includes analog inputs, control of motorized valves in suction manifold and control devices for lightning.
• 3 Filtration Pumps (3-phase).
• 1 Lighting Control.
• 1 Aux. Output (max 10A).
• Balancing tank minimum level.
• Balancing tank filling level.
• Balancing tank maximum level.
• Transformer 24VAC filling valve.
• 3 Control valves inlet pumps.
• 3 Control pump switches M-0-A.
• 1 Lighting switch M-0-A.
• 1 Filling switch 0-A.
• Real energy / Reactive energy / Apparent energy meter.
• 4 Analog inputs (4-20mA).
• 3 Digital inputs to monitor filtration pump status.
• 3 Digital inputs to monitor the motor circuit breakers.
• 3 Digital inputs to monitor end of stroke.
• 2 Digital inputs to monitor maximum and minimum balancing tank level.
• 2 Digital inputs for water-meter by pulses.
• 3 Available digital inputs.
• 4 Available digital outputs (max 2A).
