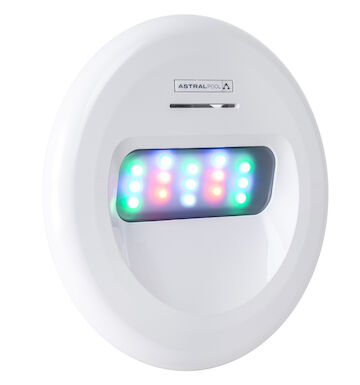

The design of LumiPlus Design was awarded by Reddot Award 2014, which recognizes the superiority in a total of nine aspects that include innovation, functionality, ergonomics, ecology and durability.
Available in two finishes: Pure White and Inox Effect. The stainless effect is achieved thanks to the application of the innovative IMD technology (In Mold Decoration).
The lens of the LumiPlus Design projector is oriented 14º to the horizontal plane to better illuminate the background and avoid light pollution on the outside of the pool.
Available in the following light colors: cold white, warm white, RGB and RGB-DMX.
The RGB model is compatible with the LumiPlus Eco, LumiPlus Top, LumiPlus WiFi Access Point and LumiPlus Modbus controls (compatible with the Fluidra Connect platform). The RGB-DMX model is compatible with the DMX 41107 modulator.
It is supplied with replaceable cable of 2 x 1.5mm2 and a length of 2.5 m.
To complete LumiPlus Design luminaires, you must purchase the niche separately. Available niches for concrete pool and prefabricated pool / liner.
To properly illuminate a swimming pool, it is recommended: Install a LumiPlus Design family bulb every 25 m2 of water surface.
Note: Valid recommendations for pools with light colors and for projectors with white light, oversize in RGB colors. In pools of dark colors or stainless steel it is recommended to oversize the proportion of projectors per m2.
Power Consumption White: 32 (35VA)
Power Consumption RGB / RGB-DMX: 32W (42VA)
Power: 12Vac
Lifespan: L70 – 50,000h
