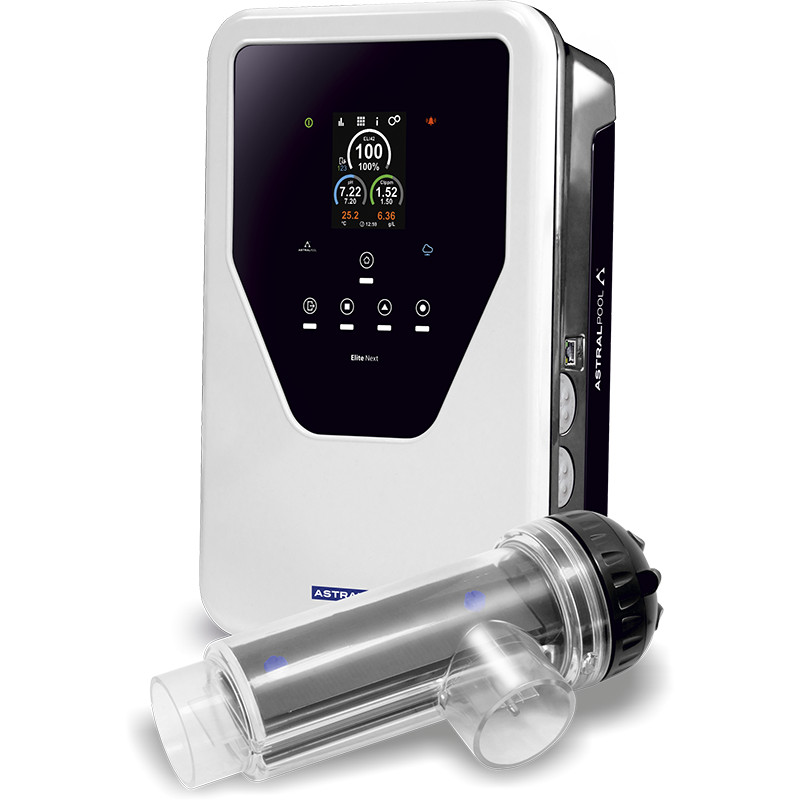

Elite Connect
- Enjoy more, maintain less
- Unrivaled upgradeability
- Integrated connectivity
Smart saltwater chlorinator with pool equipment control and connectivity.
• Chlorine output (g/h): 12 / 24 / 32 / 42
• Recommended pool volume (m³): 50 / 80 / 120 / 160
• Salinity (g/L): Low Salt: Min. 1 Rec. 1,5 – Max. 5; Standard Salt: Min. 4. Req. 5 – Max. 12
• User interface: 2.8” TFT touchscreen
• Displayed parameters: Salinity, temperature, ORP, pH, alarms
• Pool equipment control: 4 digital inputs / 4 outputs for pump, lighting, heater, etc.
• Programming with built-in timers for all pool functions.
• Scalability: Compatible with S-Driver modules: pH, ORP, ppm, VS pump
• Production modes: Normal, Boost, Cover (adjustable), Biopool
• Included Sensors: Gas detector, flow switch, temperature
• Optional Sensors: pH, ORP, ppm
• Cell cleaning: Polarity reversal (2h / 3h / 4h / 7h / test)
• Cell lifetime: 12,000 hours
• Cell type: Transparent
• Cell position: Vertical
• Hydraulic compatibility: DN50 / DN63
• Alarms & Safety: Gas sensor, flow switch, salinity, temperature, pH, Cl, cell, others.
• Connectivity: Integrated Wi-Fi & Bluetooth + Fluidra Pool App
| CODE | Description | Spare Parts |
|---|---|---|
| 76742 | Elite Connect 12 | See Spare Parts |
| 76743 | Elite Connect 24 | See Spare Parts |
| 76744 | Elite Connect 32 | See Spare Parts |
| 76745 | Elite Connect 42 | See Spare Parts |
| 76746 | Elite Connect LS 12 | See Spare Parts |
| 76747 | Elite Connect LS 24 | See Spare Parts |
| 76748 | Elite Connect LS 32 | See Spare Parts |
| 72454 | Relay Box | See Spare Parts |
| 70049 | Module S-Driver Control pH | See Spare Parts |
| 70054 | Module S-Driver SD-Pump (pH) | |
| 70051 | Module S-Driver SD-ORP | See Spare Parts |
| 70052 | Module S-Driver Control PPM | |
| 73471 | VSP driver Elite Connect | |
| 76759 | Module S-Driver pH+ORP |
