Description

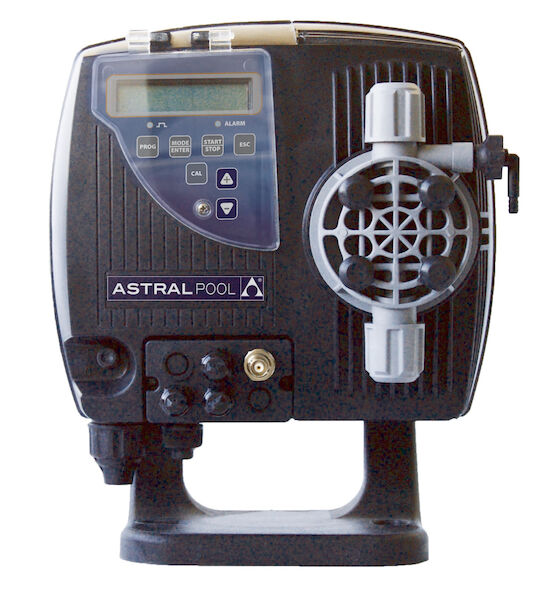

Optima membrane dosing pump The Optima series, featuring all-new power supply technology available from 90 V ac up to 265 V ac and 50-60Hz, guarantees unprecedented dosing precision and adaptability. Many more functions are now integrated, thanks to the ease of programming, the alpha-numeric display, the multi-language menu programming options and the new technology which allows pool owners to fully control the flow rate and counter-pressure levels, permitting solutions to a wide range of dosing requirements with a single pump, without the need to sacrifice dosing accuracy. Optima dosing pump with built-in pH/Redox control. pH/Redox instrument. Automatic calibration: Calibration by simply pressing a key, with the possiblity of controlling the level of sensor efficiency Available functions: - 90-265 VAC 50/60 Hz power supply - Manual compensation of temperature for pH or automatic compensation by means of PT100. - 4…20mA output for graphic recorder or transmitting the measured value. - Level alarm with pump disconnection or simple warning of lack of product by means of the alarm relay. - Set point deviation alarm, programmable for the entire measurement interval - O.F.A. time (Over Feed Alarm) to prevent the dosing pump from infecting product if the sensor malfunctions. - Maximum dosing pump flow rate for preventing overdosing. - Password for protecting programmed data. - Available alarms.

CODE Description Spare Parts
66179 Type C Optima Redox/pH control dosing pump (10 bar and 5 l/h and 5 bar and 10 l/h) See Spare Parts
Show less

Document downloads

Leaflet

Curves

Manual

  • Manual OPTIMA with pH/Redox analyser EN ES FR +
    View
  • Manual OPTIMA with pH/Redox analyser EN ES FR +
    View

Certificates

Show less
