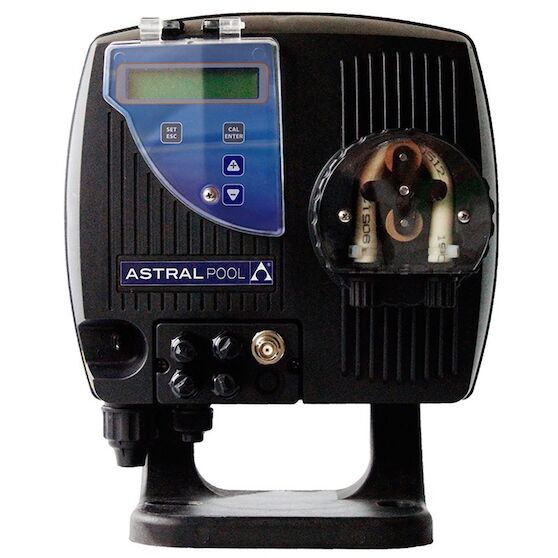

Description

Supplied without sensors or calibration solutions. Installation kit included
• Plastic housing with IP-65 protection rating
• Backlit LCD display comprising 2 lines and 16 characters
• Self-calibration of sensors
• Quality control of sensors
• Dosing pause during alarms and notification by a blinking LED
• Proportional dosing.
• Adjustable set point
• Flow rate: 1,5 l/h or 5 l/h
• Back pressure: 1.5 bar
• pH measurement range: 0.00 to 14.00
• Redox measurement range: -999 to + 999 mV.
• Switch
• Alarm relay
• Minimum chemical product level input
• PT100 temperature inlet (optional sensor)

CODE Description Spare Parts
66159 Control Basic 1,5 L/h See Spare Parts
66160 Control Basic 5,0 L/h See Spare Parts
36004 pH sensor with calibration solutions
36005 Rx Electrode for Control Basic, Redox Basic EV and OPTIMA pumps
66758 PT100 sensor
66759 Flange for PT100
Show less

Document downloads

Manual

Leaflet

Product data sheet

Show less
