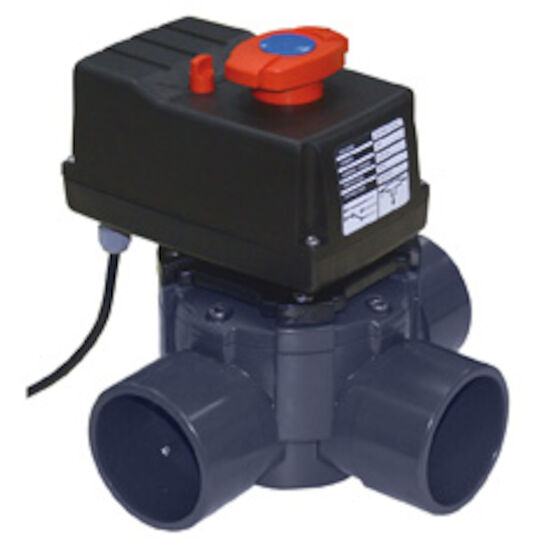

Rotary automatic disc valve 180º 24 VAC

Description

3-way rotary disc valve in PVC-U with rotary flap to shut off one port. Can be used in circuits where the 3-way rotary disc valve in PVC-U with rotary flap to shut off one port. Can be used in circuits where the
working pressure is not above 6 bar (90 psi); includes a lever that shows the closed port.
Sizes: Ø 50-63 mm and Ø 63-75 mm. Available in manual (lever) or automatic (electric actuator) mode.
Designed for use in pools and spas. The manual valve can have 2 open ports and 1 shut off, 3 open ports or a
partial adjustable opening, whilst the electric actuator can be turned from 90º to 180º and has a 220 VAC or
24 VAC connection.

CODE Description Spare Parts
45866 D50-D63
59960 D63-D75
Show less

Document downloads

Installation and maintenance manual

  • Installation and maintenance manual EN ES FR +
    Download

Leaflet

Show less
