Modular transversal grating for curves
back

Description

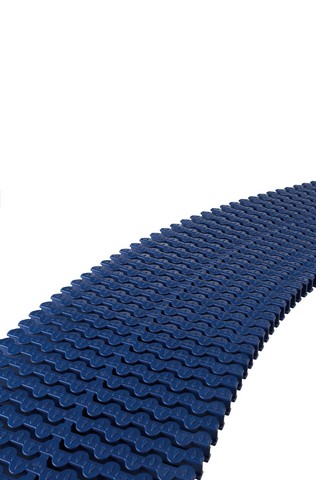

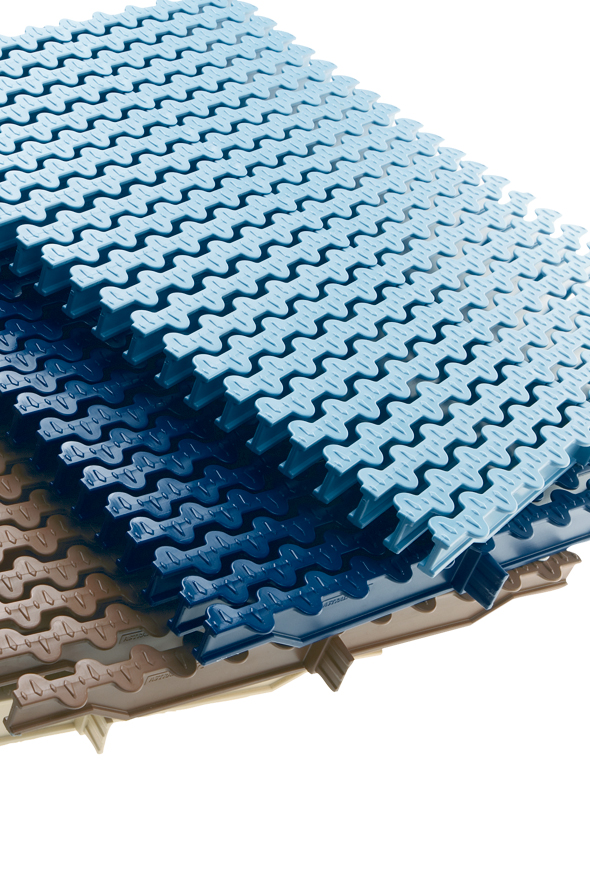

Colour and design for your pool overflow Transversal grille, specially designed for curved pool areas. The range is comprised of 5 colours, allowing greater aesthetic adaptability for your pool. The range also offers two height and five length options. Significant advantages when designing your pool overflow system. General Characteristics • Product certified with EN-13451-1 safety standards • Manufactured in polypropylene guaranteeing protection against UV rays. • Module connection adjustment system. • Modules are reversible in the 35 mm (height) model. It is necessary to construct the channel 5mm wider that the grating itself, to allow for easy of removal and to allow expansion. 52 nos. per lineal metre.

CODE Description Spare Parts
34190 Height 22 mm, width 195 mm Modular Grating for curves
34191 Height 22 mm, Width 245 mm Modular Grating for Curves
34192 Height 22 mm, Width 295 mm Modular Grating for Curves
34193 Height 22 mm, width 335 mm Modular Grating for Curves
34194 Height 35 mm, Width 195 mm. Reversible Modular Grating for Curves
34195 Height 35 mm, Width 245 mm. Reversible Modular for Curves
34196 Height 35 mm, Width 295 mm. Reversible Modular Grating for Curves
34197 Height 35 mm, Width 335 mm. Reversible Modular Grating for Curves
11107 Height 22 mm, Width 195 mm.
11108 Height 22 mm, Width 245 mm.
19202 Overflow grating 300mm wide x 20mm, single spine
19203 Height 22 mm, Width 335 mm.
00220 Reversible. Height 35 mm, Width 195 mm.
00221 Reversible. Height 35 mm, Width 245 mm.
00222 Reversible. Height 35 mm, Width 295 mm.
00223 Reversible. Height 35 mm, Width 335 mm.
