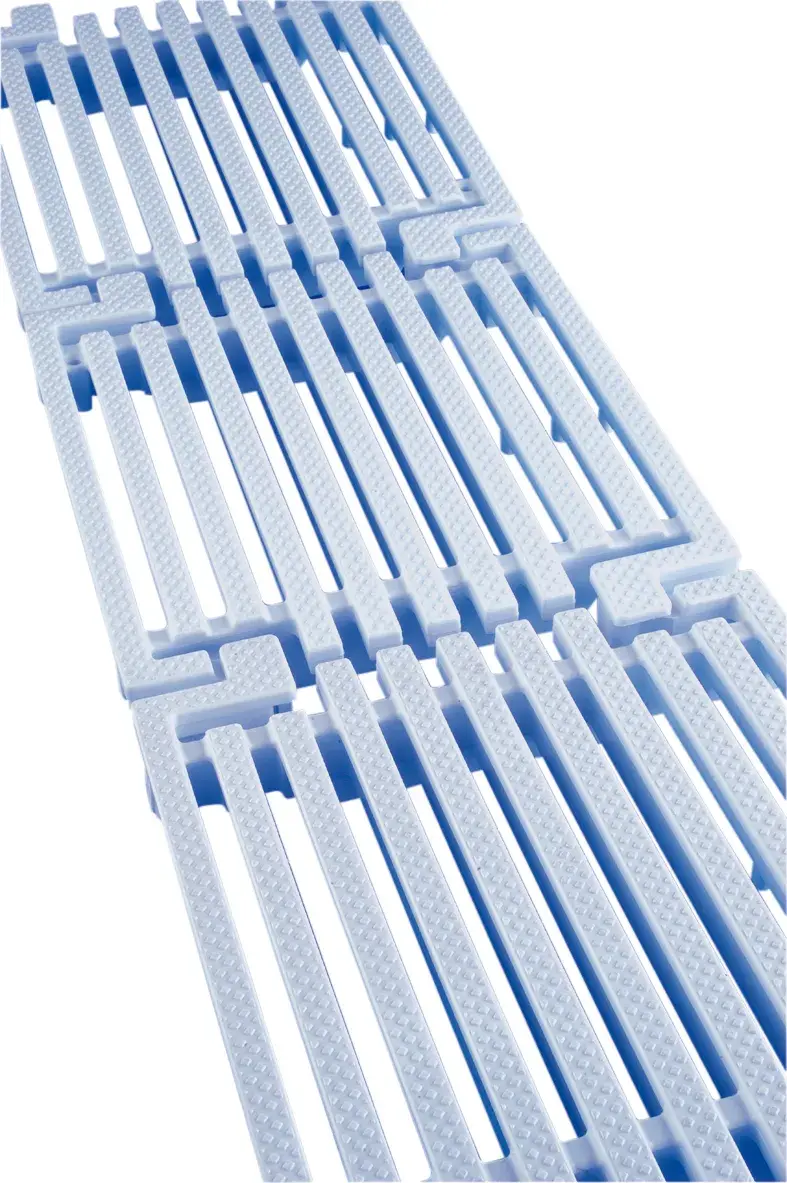

Longitudinal Grating tile

Description

Made in PP (polypropylene) stabilised against UV rays. Standard white colour. It is necessary to construct the channel 5mm wider that the grating itself, to allow for easy of removal and to allow expansion. The longitudinal design of the tiles ensures that any excess water from the pool is not allowed to overflow onto the pool surround keeping this area dry. For clicking together same types of male-female tiles (5 units = 1,024m). Their flexibility enables obtaining curve with a minimum radius of 5m.

CODE Description Spare Parts
05581 Heigh 24mm. Width 195 mm.
05582 Heigh 24mm. Width 245 mm.
05583 Heigh 24mm. Width 295 mm.
05584 Heigh 24mm. Width 345 mm.
Show less

Document downloads

Leaflet

Product data sheet
