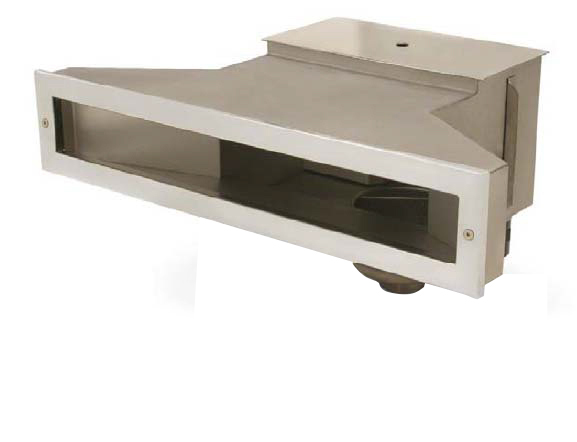

SLIM: S.S. Skimmer A-500 Large mouth
In AISI-316L stainless steel. With Ø50mm overflow, basket and lid in stainless steel, both included. It has accommodation to mount the level regulator valve 73453 (see page 122). With connection for equipotential connection. Flow recommended 7.5 m3 / h. Items 56313 and 56316 includes flanges for liner applications. Also exist with 6° inclination: items 72744 and 72743 see page 117. Water level +/- 8 cm. Basket capacity 1.2L.
Complies with Standard
EN 13451-1-3
EN 16582-1
EN 16713-2
| CODE | Description | Spare Parts |
|---|---|---|
| 56313 | Skimmer A-500 Large mouth 500 mm - For concrete and liner pools | See Spare Parts |
| 56316 | Skimmer A-500 Large mouth 650 mm - For concrete and liner pools | See Spare Parts |
| 72744 | Skimmer A-500 Large mouth 500 mm, 6º inclination - for polyester pools | See Spare Parts |
| 72743 | Skimmer A-500 Large mouth 650 mm, 6º inclination - for polyester pools | See Spare Parts |
