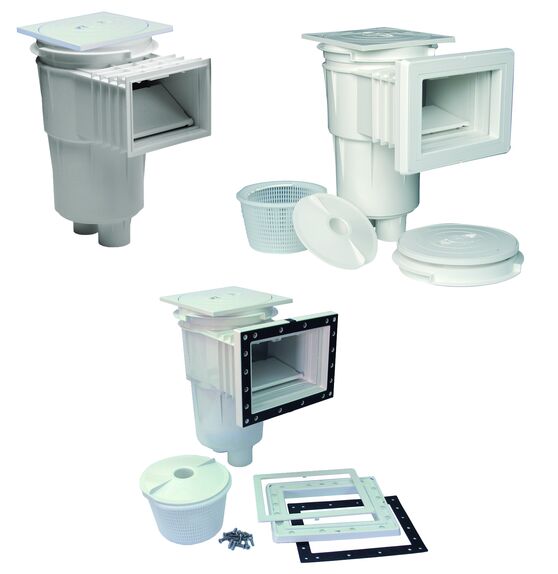

Skimmer 17.5 L standard mouth
back

Description

• All of the components that are exposed in this range of skimmers come with a UV treatment. Made of ABS, they come with a weir flap and a flow regulator plug. Bottom suction nozzle connection: 11/2” inner thread.
• Simultaneous connection to the main drain: 2” inner thread. Overflow connection: Ø 32 mm. Round cover with spring clip fastening system.
• The height of the cover can be adjusted and turned through an extended throat, so that it sits perfectly flush with the coping stone.
• Leaf trap secured to base by means of a bayonet mount. In-built weir flap housing. Recommended flow rate: 5 m3/h.
• It is recommended that one skimmer be installed for every 25 m2 of water surface area.

Complies with Standards
EN 16582-1
EN 16713-2

CODE Description Spare Parts
11306 Skimmer - for concrete pools See Spare Parts
11302 Skimmer with face plate - for concrete pools See Spare Parts
11307 Skimmer with extended throat - for concrete pools See Spare Parts
11303 Skimmer with face plate and extended throat - for concrete pools See Spare Parts
11309 Skimmer - for liner pools See Spare Parts
11310 Skimmer with extended throat - for liner pools See Spare Parts
35664 Skimmer 6° - for polyester pools See Spare Parts
68108 Skimmer 6° (without inserts) - for polyester pools See Spare Parts
68108CL090 Skimmer 6° (without inserts) - for polyester pools - Beige See Spare Parts
68108#CL#129 Skimmer 6° (without inserts) - for polyester pools - Light grey See Spare Parts
68108#CL#144 Skimmer 6° (without inserts) - for polyester pools - Anthracite See Spare Parts
11309#CL#090 Skimmer with square cover - Beige See Spare Parts
11309#CL#129 Skimmer with standard mouth and square cover for liner pools - Light Grey See Spare Parts
11309#CL#144 Skimmer with standard mouth and square cover for liner pools - Anthracite Grey See Spare Parts
11310#CL#090 Skimmer with square cover and extended throat for liner pools - Beige See Spare Parts
11310#CL#144 Skimmer with square cover - Light Grey See Spare Parts
11310#CL#129 Skimmer with square cover - Light Grey
