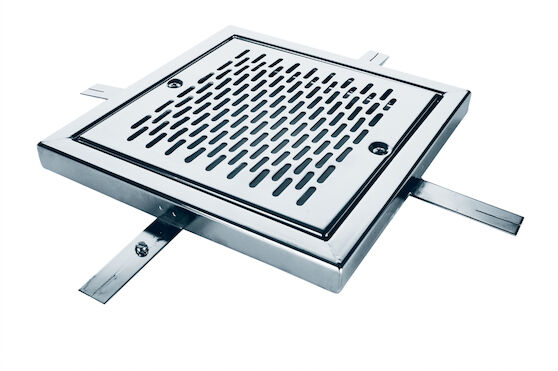

Drain grating in stainless steel
Stainless steel frame. Stainless steel grille. Supplied with grille fixing screws. Other dimensions can be supplied on order.
| CODE | Description | Spare Parts |
|---|---|---|
| 00284 | AISI-304 - 200x200 mm - Max.Rec. Flow 15 m³/h (0,5 m/s) | See Spare Parts |
| 00285 | AISI-304 - 300x300 mm - Max.Rec. Flow 43 m³/h (0,5 m/s) | See Spare Parts |
| 00286 | AISI-304 - 400x400 mm - Max.Rec. Flow 83 m³/h (0,5 m/s) | See Spare Parts |
| 00287 | AISI-304 - 500x500 mm - Max.Rec. Flow 136 m³/h (0,5 m/s) | See Spare Parts |
| 30764 | AISI-316L - 200x200 mm - Max.Rec. Flow 15 m³/h (0,5 m/s) | See Spare Parts |
| 30765 | AISI-316L - 300x300 mm - Max.Rec. Flow 43 m³/h (0,5 m/s) | See Spare Parts |
| 30766 | AISI-316L - 400x400 mm - Max.Rec. Flow 83 m³/h (0,5 m/s) | See Spare Parts |
| 30767 | AISI-316L - 500x500 mm - Max.Rec. Flow 136 m³/h (0,5 m/s) | See Spare Parts |
