Products Pool shell equipment Main drains ABS main drain

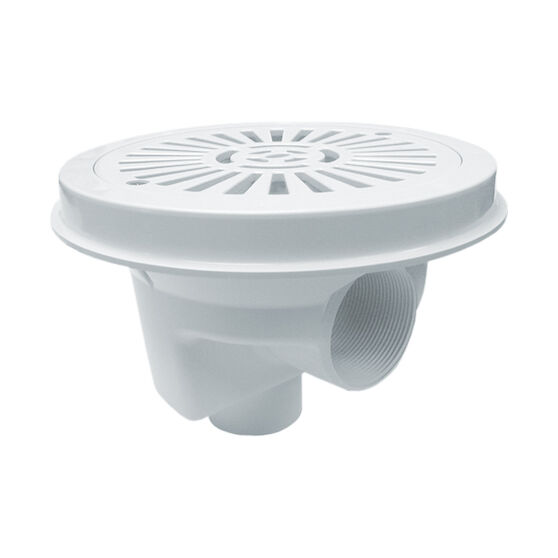

Round Ø 200 mm main drain
back

Description

Manufactured in white ABS material. 2" side outlet and 11/2" bottom outlet. Antivortex grating. Bottom outlet covered by semi-die cut socket, which can be opened as required. Possibility of fitting drainage tube code 21581.
Max. flow rate: 13 m3/h.
Possibility to convert into NORM changing the grating.

Complies with Standards
EN 16582-1

CODE Description Spare Parts
27837 Round main drains Antivortex - for concrete pools See Spare Parts
27125 Round main drains Antivortex - for liner and polyester pools See Spare Parts
27839 Round main drains flat grating - for concrete pools See Spare Parts
27838 Round main drains flat grating - for liner and polyester pools See Spare Parts
Show less

Document downloads

Technical Drawings

  • Technical drawings 27837 EN ES FR +
    View
  • Technical drawings 27837 EN ES FR +
    View
  • Technical drawings 27125 EN ES
    View
  • Technical drawings 27125 EN ES FR +
    View
  • Technical drawings 27838 EN ES
    View

Product data sheet

  • Product Data Sheet 27837 EN ES
    View
  • Product Data Sheet EN ES
    View

Leaflet

Manual

Installation manual

  • Installation manual EN ES FR +
    View
Show less
