Products Filtration Laminated sand filters
Aster Filter
back

Description

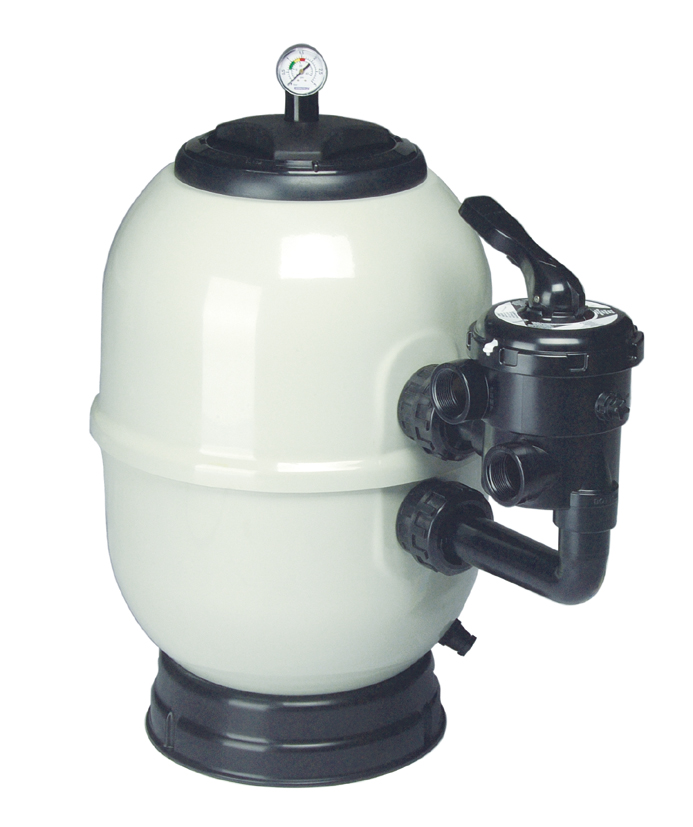

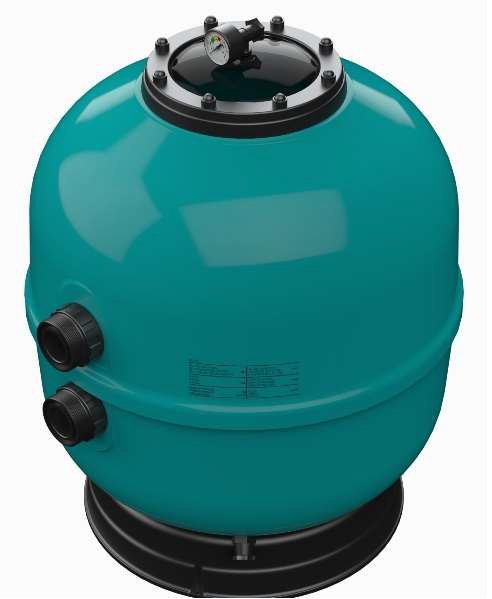

Filter laminated in polyester and fibreglass. Grey, polypropylene base, screw-free lid, cap for sand and water discharge, pressure gauge and side selector valve. Maximum pressure 2.5 bar. Maximum filtration speed 50/h/ m2. Complies with filtration requirements as per standard EN 16713-1. Sand and glass compatible.

CODE Description Spare Parts
00499 Ø 600 mm / 14000 l/h outlet 1 ½” with side mounted multiport valve See Spare Parts
00498 Ø 450 mm / 8000 l/h outlet 1 ½” with side mounted multiport valve See Spare Parts
28479 Ø 680 mm / 18000 l/h outlet 1½'' with side mounted multiport valve See Spare Parts
00500 Ø 750 mm / 21000 l/h outlet 2” with side mounted multiport valve See Spare Parts
00501-0100 Ø 900 / 31,000 l/h / 2 ½ '' without multiport valve See Spare Parts
00497 Ø 350 mm / 5000 l/h outlet 1 ½” with side mounted multiport valve See Spare Parts
08133 Ø 900 mm / 32000 l/h outlet 2" with side mounted multiport valve See Spare Parts
19781 Ø 500 mm / 9000 l/h outlet 1 ½” with side mounted multiport valve See Spare Parts
21071 Ø 650 mm / 15000 l/h outlet 1 ½” with side mounted multiport valve See Spare Parts

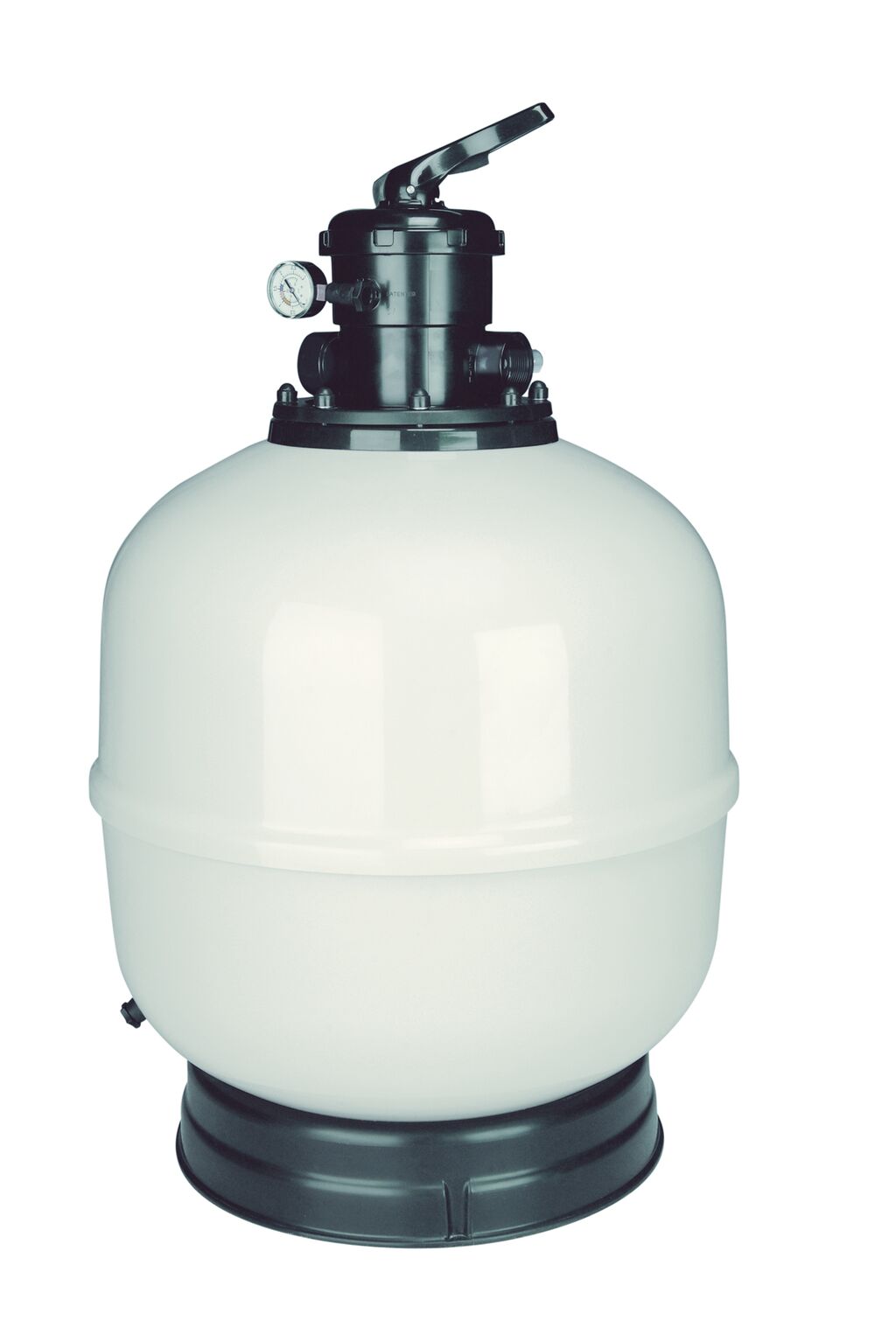

30768 Ø 350 mm / 5000 l/h outlet 1½'' with top mounted multiport valve See Spare Parts
30769 Ø 450 mm / 8000 l/h outlet 1½'' with top mounted multiport valve See Spare Parts
30770 Ø 500 mm / 9000 l/h outlet 1½'' with top mounted multiport valve See Spare Parts
30771 Ø 600 mm / 14000 l/h outlet 1½'' with top mounted multiport valve See Spare Parts
30772 Ø 650 mm / 15000 l/h outlet 1½' With top mounted multiport valve See Spare Parts
32706 Ø 550 mm / 12000 l/h outlet 1½' with side mounted multiport valve See Spare Parts
33847 Ø 750 mm / 21000 l/h outlet 2”” with top mounted multiport valve See Spare Parts
33848 Ø 900 mm / 32000 l/h outlet 2” with top mounted multiport valve See Spare Parts
Show less
