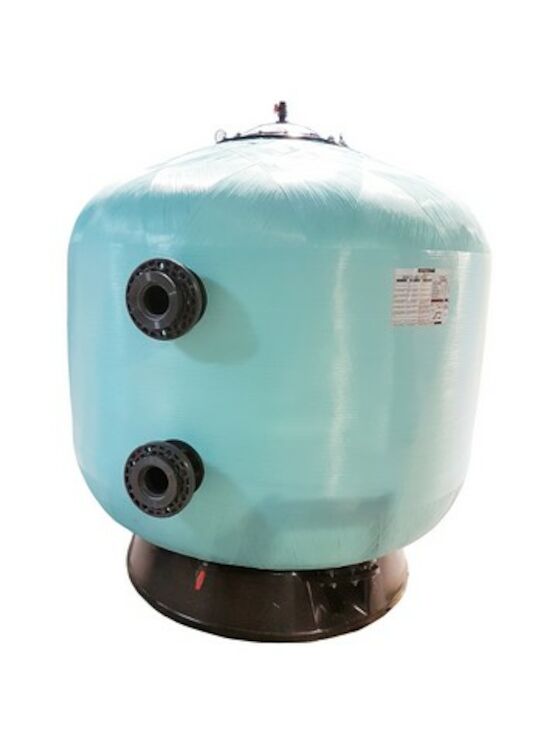

Praga filter
back

Description

· This filter is manufactured with fibre-glass and polyester resin. · Totally anticorrosive. · Lid of Ø 400 mm. · Supplied with manual air relief valve and water purge, sand dump port and pressure gauge panel. · Fitted with collector arms and diffuser made from unplasticised PVC and polypropilene. · Resistant to salt water. · It contains newly designed larger and more resistant ABS collector arms. · Filter bed height 1m. · Maximum temperature: 50º C. · Maximum pressure of either 2,5 or 4 Kg/cm2. OPTIONS: - Battery valves built entirely in PVC/PN-10 with flange connections to filters according to DIN standards. Butterfly and ball valves are in PVC. - Valve battery supports: made from zinc-plated steel tube, with anti-vibrations arms and fixing screw. Options for vertical and wall support.

CODE Description Spare Parts
00687 2,5 kg/cm² - Ø 1.050 - 17 m³/h See Spare Parts
00688 2,5 kg/cm² - Ø 1.200 - 22-33 m³/h See Spare Parts
00689 2,5 kg/cm² - Ø 1.400 - 30 m³/h See Spare Parts
00690 2,5 kg/cm² - Ø 1.600 - 40 m³/h See Spare Parts
00691 2,5 kg/cm² - Ø 1.800 - 50 m³/h See Spare Parts
00692 2,5 kg/cm² - Ø 2.000 - 62 m³/h See Spare Parts
00693 2,5 kg/cm² - Ø 2.350 - 87 m³/h See Spare Parts
00694 2,5 kg/cm² - Ø 1.050 - 25-34 m³/h See Spare Parts
00696 2,5 kg/cm² - Ø 1.400 - 46 m³/h See Spare Parts
00697 2,5 kg/cm² - Ø 1.630 - 60-80 m³/h See Spare Parts
00698 2,5 kg/cm² - Ø 1.800 - 76 m³/h See Spare Parts
00699 2,5 kg/cm² - Ø 2.000 - 94 m³/h See Spare Parts
00700 2,5 kg/cm² - Ø 2.350 - 130 m³/h See Spare Parts
00702 2,5 kg/cm² - Ø 1.200 - 45 m³/h See Spare Parts
00703 2,5 kg/cm² - Ø 1.400 - 61 m³/h See Spare Parts
00705 2,5 kg/cm² - Ø 1.800 - 101 m³/h See Spare Parts
00706 2,5 kg/cm² - Ø 2.000 - 125 m³/h See Spare Parts
00712 4 kg/cm² - Ø 1.050 - 25-34 m³/h See Spare Parts
00713 4 kg/cm² - Ø 1.200 - 22-33 m³/h See Spare Parts
00714 4 kg/cm² - Ø 1.400 - 46 m³/h See Spare Parts
00715 4 kg/cm² - Ø 1.600 - 60-80 m³/h See Spare Parts
00716 4 kg/cm² - Ø 1.800 - 76 m³/h See Spare Parts
00717 4 kg/cm² - Ø 2.000 - 94 m³/h See Spare Parts
00719 4 kg/cm² - Ø 1.200 - 45 m³/h See Spare Parts
00720 4 kg/cm² - Ø 1.400 - 61 m³/h See Spare Parts
00722 4 kg/cm² - Ø 1.800 - 101 m³/h See Spare Parts
00723 4 kg/cm² - Ø 2.000 - 125 m³/h See Spare Parts
04935 2,5 kg/cm² - Ø 2.350 - 175 m³/h See Spare Parts
08695 2,5 kg/cm² - Ø 2.500 - 100 m³/h See Spare Parts
08696 2,5 kg/cm² - Ø 2.500 - 150 m³/h See Spare Parts
08697 2,5 kg/cm² - Ø 2.500 - 200 m³/h See Spare Parts
08699 2,5 kg/cm² - Ø 3.000 - 140 m³/h See Spare Parts
08700 2,5 kg/cm² - Ø 3.000 - 212 m³/h See Spare Parts
08701 2,5 kg/cm² - Ø 3.000 - 282 m³/h See Spare Parts
09209 4 kg/cm² - Ø 1.050 - 17 m³/h See Spare Parts
09210 4 kg/cm² - Ø 1.400 - 30 m³/h See Spare Parts
09211 4 kg/cm² - Ø 1.600 - 40 m³/h See Spare Parts
09212 4 kg/cm² - Ø 1.800 - 50 m³/h See Spare Parts
09213 4 kg/cm² - Ø 2.000 - 62 m³/h See Spare Parts
09214 4 kg/cm² - Ø 2.350 - 87 m³/h See Spare Parts
09215 4 kg/cm² - Ø 2.500 - 100 m³/h See Spare Parts
09216 4 kg/cm² - Ø 3.000 - 140 m³/h See Spare Parts
09217 4 kg/cm² - Ø 2.350 - 130 m³/h See Spare Parts
09218 4 kg/cm² - Ø 2.500 - 150 m³/h See Spare Parts
09219 4 kg/cm² - Ø 3.000 - 212 m³/h See Spare Parts
09220 4 kg/cm² - Ø 2.350 - 175 m³/h See Spare Parts
09221 4 kg/cm² - Ø 2.500 - 200 m³/h See Spare Parts
09222 4 kg/cm² - Ø 3.000 - 282 m³/h See Spare Parts
00707 2,5 kg/cm² - Ø 1.050 – 43 m³/h
00710 2,5 kg/cm² - Ø 1.600 – 100 m³/h
00711 2,5 kg/cm² - Ø 1.800 – 125 m³/h
33312 2,5 kg/cm2 - Ø 1.800 – 125 m3/h
05083 2,5 kg/cm² - Ø 2.000 – 157 m³/h
56937 2,5 kg/cm² - Ø 2.200 – 114 m³/h
56938 2,5 kg/cm² - Ø 2.200 – 152 m³/h
00724 2,5 kg/cm² - Ø 1.050 – 43 m³/h See Spare Parts
00727 2,5 kg/cm² - Ø 1.600 – 100 m³/h See Spare Parts
00728 2,5 kg/cm² - Ø 1.800 – 125 m³/h See Spare Parts
05132 2,5 kg/cm² - Ø 2.000 – 157 m³/h See Spare Parts
57812 2,5 kg/cm² - Ø 2.200 – 114 m³/h
57813 2,5 kg/cm² - Ø 2.200 – 152 m³/h
