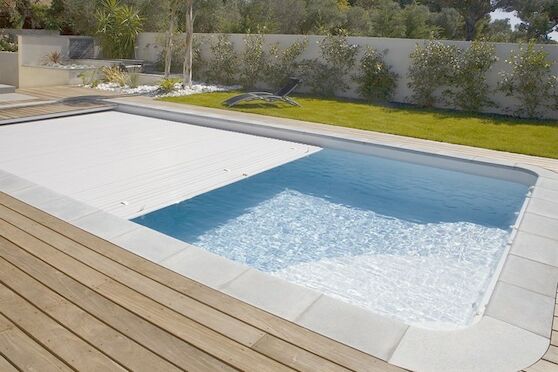

The Roussillon automatic cover is the submerged model which incorporates the motor in a separate sunken compartment, and both the roller axle as well as the cover are housed at one end inside the pool itself.
The submerged zone containing the roller axle should be separated by a small concrete partition at the time of construction or with a PVC partition later on.
The basic elements for assembling the cover are the slats, the step slats, (from page 439), the mechanical kit, the embedding kit, the aluminium tie beam and the pit cover.
MECHANICAL KIT
Includes the following elements:
- Ø 146 mm extruded aluminium axle, 5 mm thick and Ø 30 mm joint shaft.
- Motor stand.
- Watertightness joints on bushing side.
- Watertightness joints on bearing stand side.
- 24 V reducer motor with stainless steel stand.
- 220/24V standard switchboard.
- On-off key switch.
Should be installed in full view of the pool. It works by continuous turning of the key.

CODE Description Spare Parts
33075 Embedding kit with 110mm wall conduit
060467 Maximum pool dimensions 5 x 11 m. 5 mm thick Aluminium axle Ø 146. Reducer motor 120 Nm
060466ET Maximum pool dimensions 7 x 14 m. 3 mm thick Stainless Steel axle Ø 168.3. Reducer motor 250 Nm
060470ET Maximum pool dimensions 8 x 15 m. 3 mm thick Stainless Steel axle Ø 168.3. Reducer motor 600 Nm
060570 Maximum pool dimensions 9 x 18 m. Stainless steel axle Ø 300 mm. Reduce motor 600 Nm
060465ET ROUSSILLON IMFS 4 m / M 120 nm / A 500 mm
060467ET ROUSSILLON IMFS 5 m / M 120 nm / A 500 mm
060468ET ROUSSILLON IMFS 6 m / M 250 nm / A 500 mm
061011ET ROUSSILLON with motor in dry pit 5,03
070440 Roussillon submerged model dry well motor 9,03 - 10,03 - 11,03
070441 Roussillon submerged model dry well motor 6,53 - 7,03 - 8,03
070442 Roussillon submerged model dry well motor 5,53 - 6,03
070443 Roussillon submerged model dry well motor 6,53 - 7,03
070444 Roussillon submerged model dry well motor 8,03
071601 Roussillon submerged model with dry well motor 3,53 - 4,03
