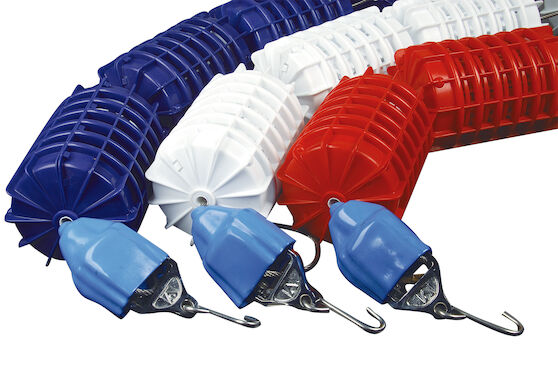

BCN03 Lane Rope
Developed and patented by AstralPool for the 2003 Swimming World Championships, the BCN03 Lane Rope model is a significant technological breakthrough in competition swimming pools as it obtains maximum absorption of the waves created by swimmers, helping the water surface to be as perfect as possible. Biomechamical tests results carried out by the Applied Hydrodynamics Institute (INHA) in July 2003: - the lane rope reduces waves in inner competition lanes by 80%. As a result, the wave caused by a swimmer when moving is practically absorbed, without causing noticeable reflection effects. - the lane rope absorb up to 50% more waves than conventional ones. Each lane of the swimming pool is affected as little as possible by activity in the adjacent lane. These are supplied assembled with floats, 6 mm stainless steel cable, tensor, shock absorber and hook. Floats with inner turbine mechanism, with outer Ø of 148 mm in keeping with International Swimming Federation regulations (FINA).
| CODE | Description | Spare Parts |
|---|---|---|
| 67599 | 25 m Red - White | |
| 67600 | 50 m Red - White | |
| 67601 | 25 m Red - Green | |
| 67602 | 25 m Red - Blue | |
| 67603 | 25 m Red - Yellow | |
| 67604 | 50 m Red - Green | |
| 67605 | 50 m Red - Blue | |
| 67606 | 50 m Red - Yellow |
Installation manual
-
Installation manual EN ES FR +
View
Technical Drawings
-
Technical drawings BCN03 Lane Rope EN ES
View
-
Technical drawings BCN03 Lane Rope EN ES
View
-
Technical drawings BCN03 Lane Rope EN ES FR +
View
-
Technical drawings 67602 EN ES FR +
View
-
Technical drawings 67603 EN ES FR +
View
-
Technical drawings 67604 EN ES FR +
View
-
Technical drawings BCN03 Lane Rope EN ES FR +
View
-
Technical drawings 67606 EN ES FR +
View
