Descripción

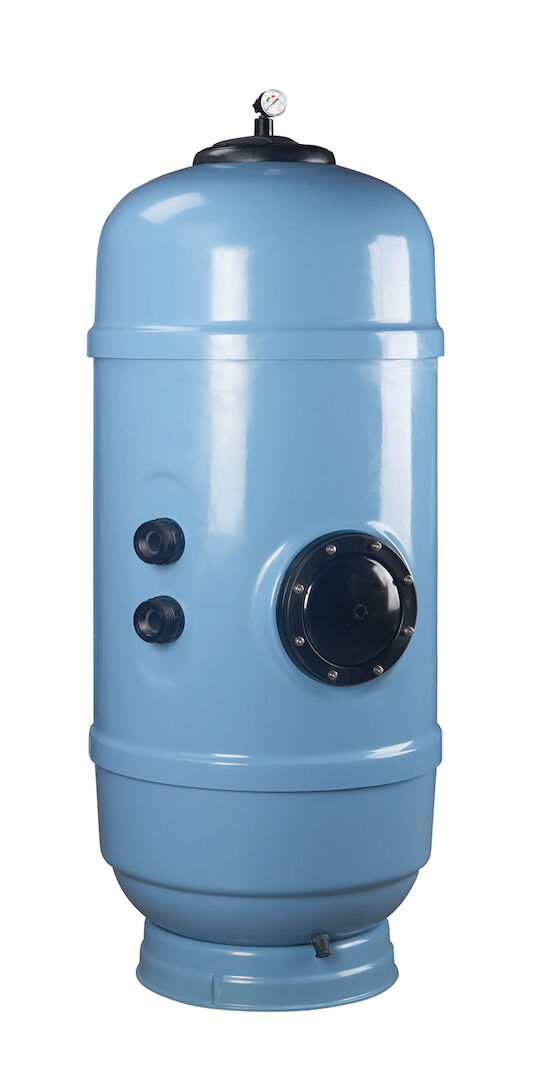

Filter laminated in polyester and fibreglass available in diameters of 650, 800, 1000 and 1200 mm. It has a 1-m filter bed and is available with an arm collector system and a plate collector system. Complies with filtration requirements as per standard EN 16713-1. • DN 200 filter lid with quick-locking system for 650 and 800 models and DN 400 bolt down lid for 1000 and 1200 models. • DN200 lateral manhole with bolt down cover. • Filter interior left with natural resin finish. • Optional methacrylate sight glass on the Delta 10 model. More than one sight glass can be placed if desired. • Inner pipe and fittings in PVC, PP and ABS. • Pressure gauge included in filter lid. • Gaskets in EPDM and all screw fittings in stainless steel. • Vinylester option. In this case, internal layer is manufactured from vinylester resin (and not only the top layer in contact with the water), to a maximum chemical resistance of 0.4 ppm of ozone dissolved and to maximum temperature 50°. • Comes in RAL 5024 blue.

CÓDIGO Descripción Recambios
36679 Ø 1200 mm con brazos colectores Ver Recambios
36684 Delta 1000 Ø 650 11/2” 13.3 Colector por crepinas Ver Recambios
36685 Delta 1000 800 2” 20.1 Colector por crepinas Ver Recambios
36686 Delta 1000 Ø 1000 21/2” 31,4 Colector por crepinas Ver Recambios
36687 Delta 1000 Ø 1200 90 45,2 Colector por crepinas Ver Recambios
58682 Delta 1000 500 11/2” 8 Colector por brazos Ver Recambios
36676 650 11/2” 13.3 Colector por brazos Ver Recambios
36677 Delta 1000 800 2” 20.1 Colector por brazos Ver Recambios
36678 Ø 1000 2½” 31,4 Colector por brazos Ver Recambios
