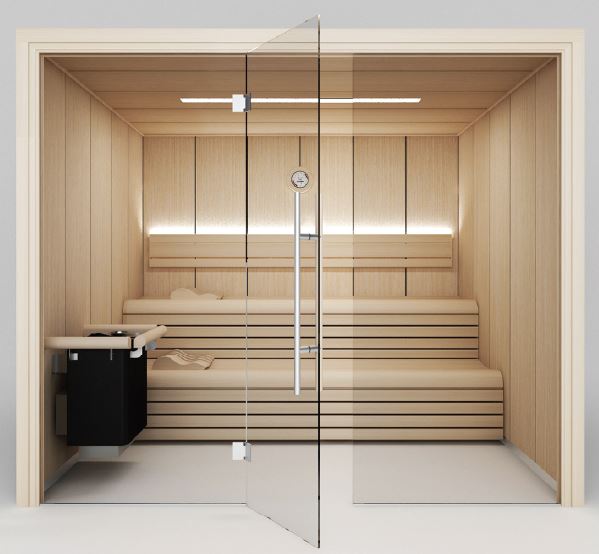

Innsbruck
+ Elegant design. + Wood of great quality. + Excellent detail. • Construction of Hemlock plywood vertical panels 56mm thick. • Tongue and grove system for optimum sealing. Temperature resistance up to 150° Celsius. • Thermal insulated inside with mineral wool and moisture insulated with aluminium foil. • Floor frame made of impregnated solid wood. • Floor grill made of Abachi wood. • Full glass front panel of 8mm tempered transparent glass with solid wooden frame. • Door: 8mm tempered transparent glass no frame; wooden handle square profile. • Covered ergonomic Benches with wall backrest, made of Abachi or similar type with low heat conductivity. Benches withstand the weight of 200 kg/m. • Headrest made of Abachi. • Sauna Led light along bench backrest, 12V, white warm light 3000K. • Heater power: according to different sizes. • Control panel: Standard series. • Silicone wiring 400 V III + N- wire + Ground wire. • Air ventilation. • The front wall is visible. If you would like the other walls to be visible, please add a comment to your order. There will be an extra charge.
| CODICE | Descrizione | Pezzi di ricambio |
|---|---|---|
| 72903 | 220 x 220 x 210 8 kW 230/400 3~ | |
| 72901 | 135 x 135 x 210 6 kW 230/400 3~ | |
| 72902 | 180 x 180 x 210 6 kW 230/400 3~ | |
| 72904 | 260 x 220 x 210 9 kW 230/400 3~ | |
| 72905 | 300 x 250 x 210 10,5 kW 230/400 3~ |
Disegni tecnici
-
Disegni tecnici 07995 EN ES FR +
Visualizza
-
Disegni tecnici 07996 EN ES FR +
Visualizza
-
Disegni tecnici 07997 EN ES FR +
Visualizza
-
Disegni tecnici 08130 EN ES FR +
Visualizza
-
Disegni tecnici 35723 EN ES FR +
Visualizza
-
Disegni tecnici 35724 EN ES FR +
Visualizza
