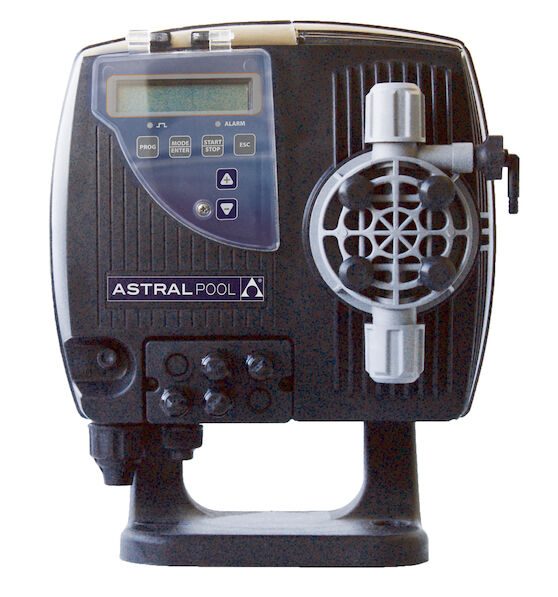

Pompa dosatrice digitale proporzionale e volumetrica OPTIMA
Optima membrane dosing pump The Optima series, featuring all-new power supply technology available from 90 V ac up to 265 V ac and 50-60Hz, guarantees unprecedented dosing precision and adaptability. Many more functions are now integrated, thanks to the ease of programming, the alpha-numeric display, the multi-language menu programming options and the new technology which allows pool owners to fully control the flow rate and counter-pressure levels, permitting solutions to a wide range of dosing requirements with a single pump, without the need to sacrifice dosing accuracy. OPTIMA proportional and volumetric digital dosing pumps provide all the functions of proportional dosing in a single model. Available functions: - Proportional with analog signals 0/4…20mA - Proportional with digital signals and the possiblity of: • Multiplying the input impulses (1:n) • Dividing the input impulses (n:1) • Function in ppm • The pump has a memory function for processing input impulses during dosing - Level alarm with pump desconnection or simple warning of lack of product by means of the alarm relay. - Maximum dosing pump flow rate for preventing overdosing. - Password for protecting programmed data - Available alarms - 90-265 VAC 50/60 Hz power supply.
| CODICE | Descrizione | Pezzi di ricambio |
|---|---|---|
| 57136 | Modello 7-10 bar e 5 litri | Vedi ricambi |
| 57137 | Modello 5 bar e 10 litri | Vedi ricambi |
| 57138 | Modello 5 bar e 20 litri | Vedi ricambi |
Opuscolo
-
Depliant IT
Visualizza
Curve
-
Curve EN ES FR +
Visualizza
Manuale di installazione
-
Manuale di installazione EN ES FR +
Visualizza
Manuale
-
Manuale Pompa dosatrice digitale proporzionale e volumetrica OPTIMA EN ES FR +
Visualizza
