Description

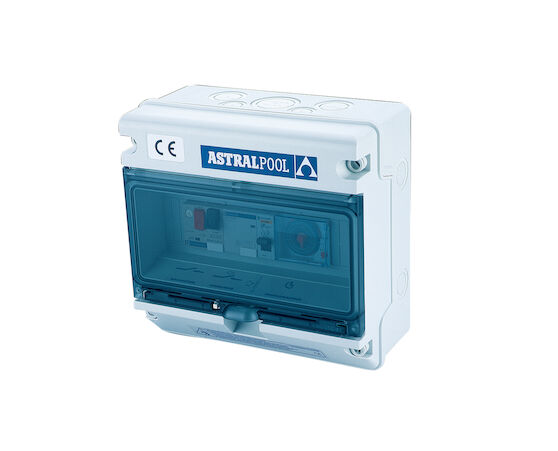

IP-65 protection. Transparent glass with lock and keys. All products are compatible with: - 220/240V 1-phase (P+N+T) 50Hz/60Hz - 380/415V 3-phase (3P+N+T) 50Hz/60Hz - 220/230V 3-phase (3P+T) 50Hz/60Hz 24H master clock with ¼h steps. Conection for pump remote control (run/stop,...), for the auxiliar equipment (cold detector,...). All the products are supplied with: - Electric scheme. - Connection diagram. - Installation instructions. - CE certification. - Gland for each cable input and output. - Screws and stoppers (4) for wall installation. The control box must be chosen according to the filtration pump nominal current: Magnetothermic protection ( from 1,6 to 10A ) contactor, 24h program clock . 3 positions: Auto / 0 / Manual.

RÉFÉRENCE Description Pièces de rechange
25717 Type A (voir table technique)
25718 Type B (voir table technique)
25719 Type C (voir table technique)
25720 Type D (voir table technique)
Afficher moins

Documents à télécharger

Manuel

  • Manuel Protection de la pompe EN ES FR +
