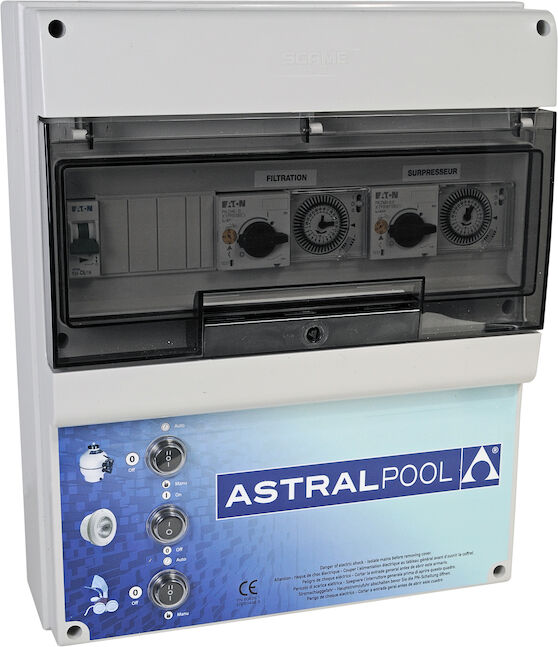

Armoire de manœuvre pour la protection de 2 pompes et le contrôle de 1 lumière sous-marine

Oú Acheter ?

Description

Control cabinets. IP-65 protection. Transparent glass with lock and key. All products are compatible with: • 220/240V 1-phase (P+N+T) 50Hz/60Hz • 380/415V 3-phase (3P+N+T) 50Hz/60Hz • 220/230V 3-phase (3P+T) 50Hz/60Hz 24H control clock with programming steps every ⁄h. Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...). All products are delivered with: • Wiring diagram • Connection diagram • Installation instructions • CE conformity certificate • Cable gland for each cable inlet and outlet. • Screws and plugs (4) for wall mounting. Depending on the nominal current of the filtration pump, the type of cabinet must be selected. Control cabinet for protection of 2 pumps and control of 1 underwater light: Thermomagnetic circuit breaker protection for 2 pumps, contactor, 24 h programming clock. 3 positions: Auto / 0 / manual. 230V 10A Protected output for lights. 12V 315VA protected output for 1 underwater light.

RÉFÉRENCE Description Pièces de rechange
70429 Type C + Type D
70422 Type D + Type D
Afficher moins

Documents à télécharger

Manuel

  • Manuel Armoire de manœuvre pour la protection de 2 pompes et le contrôle de 1 lumière sous-marine EN ES FR +
