Sena

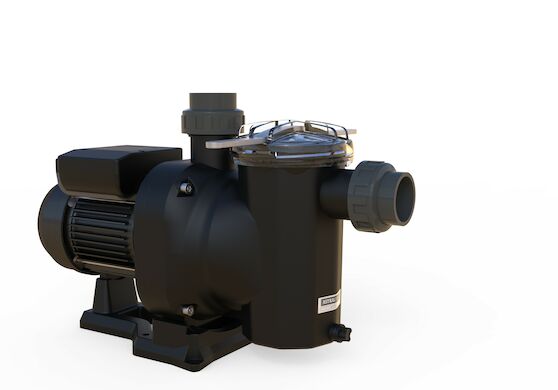

A compact self-priming pump with single-phase and three-phase motors. GS marking. IP-55 protection rating, Class F insulation and AISI-316 stainless steel for all components in direct contact with water. Motors from 1/3 HP to 1.25 HP in single-phase and from 3/4 HP to 1.25 HP in three-phase motors. All parts in contact with water made of S.S. AISI-316. Ø 50 mm solvent weld fittings for connection. Flow rates given at 6 m head for 1/3 HP, 8 m head for 1/2 HP, and 10 m head for the rest of the range. 3,000 rpm.
| CÓDIGO | Descripción | Recambios |
|---|---|---|
| 25461 | 7.000 l/h - 1/3 CV - 230 V II | Ver Recambios |
| 25462 | 7.800 l/h - 1/2 CV - 230 V II | Ver Recambios |
| 25463 | 10.400 l/h - 3/4 CV - 230 V II | Ver Recambios |
| 25464 | 10.400 l/h - 3/4 CV - 230/400 V III | Ver Recambios |
| 25465 | 12.800 l/h - 1 CV - 230 V II | Ver Recambios |
| 25466 | 12.800 l/h - 1 CV - 230/400 V III | Ver Recambios |
| 25467 | 14.000 l/h - 1,25 CV - 230 V II | Ver Recambios |
| 25468 | 14.000 l/h - 1,25 CV - 230/400 V III | Ver Recambios |
Curvas
-
Curvas Bomba Sena EN ES FR +
Visualizar
Dibujos técnicos
-
Dibujo técnico Bomba Sena EN ES FR +
Visualizar
Manual de instalación
-
Manual de instalación ES
Visualizar
Guía de inicio rápido
-
Guía rápida Bomba Sena EN ES FR +
Visualizar
Folleto
-
Folleto ES
Visualizar
