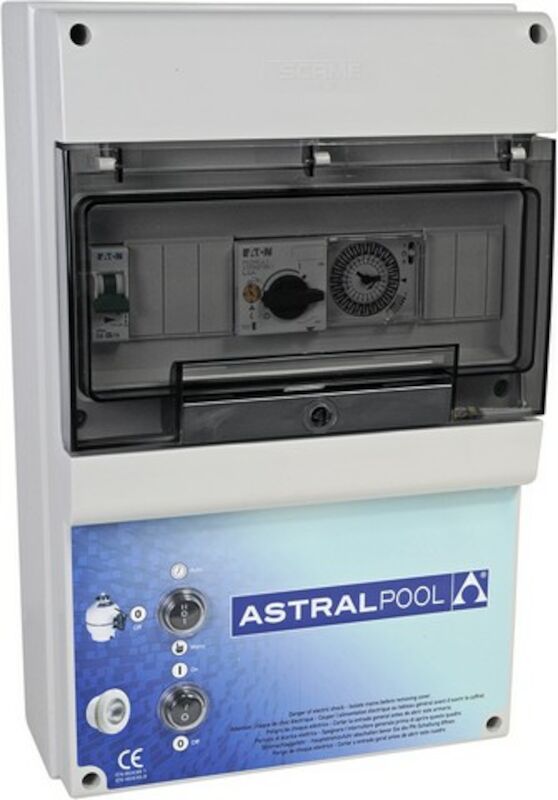

Protection de pompe et contrôle de 2 lumières sous-marines

Oú Acheter ?

Description

IP-65 protection. Transparent glass with lock and keys. All products are compatible with: - 220/240V 1-phase (P+N+T) 50Hz/60Hz - 380/415V 3-phase (3P+N+T) 50Hz/60Hz - 220/230V 3-phase (3P+T) 50Hz/60Hz 24H master clock with ¼h steps. Conection for pump remote control (run/stop,...), for the auxiliar equipment (cold detector,...). All the products are supplied with: - Electric scheme. - Connection diagram. - Installation instructions. - CE certification. - Gland for each cable input and output. - Screws and stoppers (4) for wall installation. The control box must be chosen according to the filtration pump nominal current: Magnetothermic protection (2 pumps: 1ª from 6 to 10A and 2ª from 2 to 10A) contactor, 24h program clock . 3 positions: Auto / 0 / Manual. 230V 10A protected output for lights. 12V 315VA protected output for 1 underwater light.

RÉFÉRENCE Description Pièces de rechange
69920 Type A (voir table technique)
69921 Type B (voir table technique)
69922 Type C (voir table technique)
69923 Type D (voir table technique)
Afficher moins

Documents à télécharger

Manuel

  • Manuel Protection de pompe et contrôle de 2 lumières sous-marines EN ES FR
    Afficher
  • Manuel Protection de pompe et contrôle de 2 lumières sous-marines EN ES FR
    Afficher

Manuel d’installation

  • Manuel d'installation Protection de pompe et contrôle de 2 lumières sous-marines EN ES FR +
    Afficher
  • Manuel d'installation Protection de pompe et contrôle de 2 lumières sous-marines EN ES FR +
    Afficher

Brochure
