Description

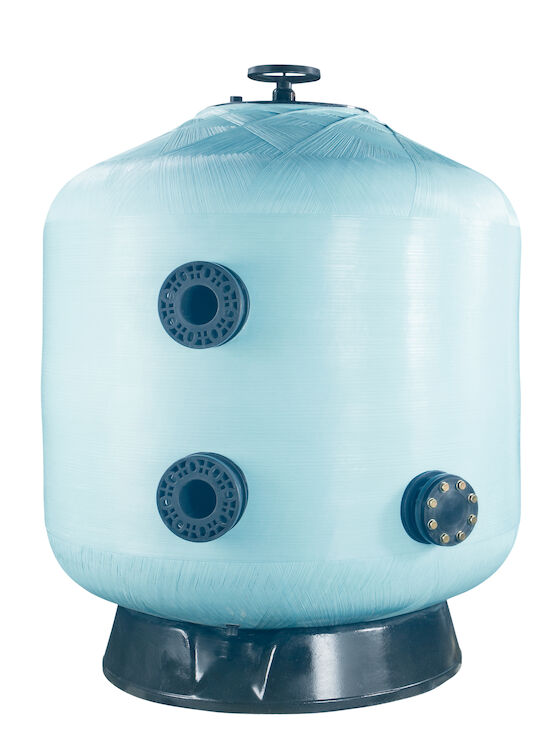

Industrial bobbin wound filters with diameters from 1050 mm to 3000 mm, with the corresponding flange connections for different filtration velocities. Replaces the Atenas model. New top cover system with quick closing system 400 x 500 mm opening. The air relief valve is fitted into the cover in order to help eliminate air from the filter. 1½” collector arms injected in ABS at the necessary lengths for each of the filters and without joints. Lengths from 90 mm to 525 mm. A reduced head loss is achieved thanks to the greater diameter of the arms. The 90 mm diameter collector tubing is injected in PVC. Water purge and air relief are faster due to a 1" connection. The distance between the top sand layer and the diffusor head (“freeboard”) has been increased to ensure greater water distribution during filtration and to prevent sand entering into the laterals during the backwashing. In the case of filters with diameters of 2350 mm, 2500 mm and 3000 mm, the top cover is Ø 400 mm that screws into place and has a PRFV high resistance neck ring. The 200 mm, 225 mm and 250 mm connections are in PVC and the foot is plain, both of which are features very similar to the Oslo and Prague models.

RÉFÉRENCE Description Pièces de rechange
11511N Ø 1.050 - 17 m3/h - Sorties 63 mm - 2.5 bar Voir pièces détachées
11512N Ø 1.200 - 22/33 m3/h - Sorties 75mm - 2.5 bar Voir pièces détachées
11513N Ø 1.400 - 30 m3/h - Sorties 75mm - 2.5 bar Voir pièces détachées
11514N Ø 1.600 - 40 m3/h - Sorties 90 mm - 2,5 bar Voir pièces détachées
11515N Ø 1.800 - 50 m3/h - Outlets 90 mm - 2.5 bar Voir pièces détachées
11516N Ø 2.000 - 62 m3/h - Outlets 110 mm - 2.5 bar Voir pièces détachées
11517N Ø 1.050 - 25/34 m3/h - Sorties 75 mm - 2.5 bar Voir pièces détachées
11518N Ø 1.400 - 46 m3/h - Sorties 90 mm - 2,5 bar Voir pièces détachées
11519N Ø 1.600 - 60/80 m3/h - Sorties 110 mm - 2,5 bar Voir pièces détachées
11520N Ø 1.800 - 76 m3/h - Outlets 110 mm - 2.5 bar Voir pièces détachées
11521N Ø 2.000 - 94 m3/h - Outlets 125 mm - 2.5 bar Voir pièces détachées
11522N Ø 1.200 - 45/56 m3/h - Sorties 90 mm - 2,5 bar Voir pièces détachées
11523N Ø 1.400 - 61/77 m3/h - Sorties 110 mm - 2.5 bar Voir pièces détachées
11524N Ø 1.800 - 101 m3/h - Outlets 125 mm - 2.5 bar Voir pièces détachées
11525N Ø 2.000 - 125 m3/h - Outlets 140 mm - 2.5 bar Voir pièces détachées
11526N Ø 1.050 - 43 m3/h - Sorties 90 mm - 2.5 bar Voir pièces détachées
11527N Ø 1.600 - 100 m3/h - Sorties 125 mm - 2,5 bar Voir pièces détachées
11528N Ø 1.800 - 125 m3/h - Outlets 140 mm - 2.5 bar Voir pièces détachées
11529N Ø 2.000 - 157 m3/h - Outlets 160 mm - 2.5 bar Voir pièces détachées
