Description

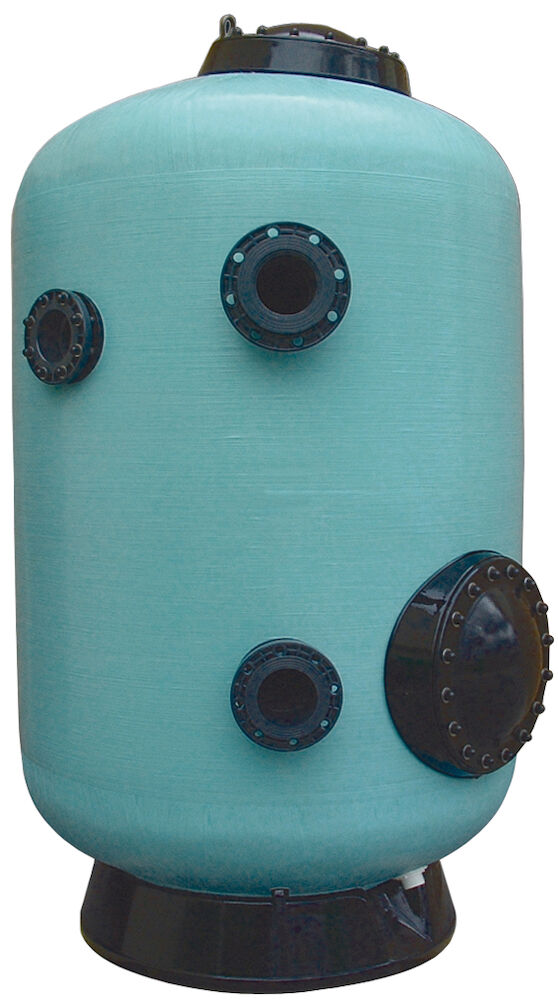

Features: According to DIN 19605/19643 Standard Collector system: Nozzle plate with 0.5 mm slots, working pressure 2.5 bar. Fitted with: - Pressure gauge panel - Manual air vent and water purge - Air wash connection flange - Ø 400 mm manhole Options: - Positioning of water connection flanges, sightglasses and manhole covers are provided according to customer specifications. - Diameters of connections and purges depend on customer specifications. - Please enquire for the variations such as height, chemical resistant internal coating, pressure rating, etc...

RÉFÉRENCE Description Pièces de rechange
07355 Hauteur Filtrante 1,2 m - Ø 1.050 - 25 m3/h - sortie 110 mm
07356 Hauteur Filtrante 1,2 m - Ø 1.200 - 33 m3/h - sortie 125 mm
07357 Hauteur Filtrante 1,2 m - Ø 1.600 - 60 m3/h - sortie 160 mm
07358 Hauteur Filtrante 1,2 m - Ø 2.000 - 94 m3/h - sortie 225 mm
07359 Hauteur Filtrante 1,2 m - Ø 2.350 - 130 m3/h - sortie 250 mm
07447 Hauteur Filtrante 1,2 m - Ø 1.400 - 46 m3/h - sortie 140 mm
07448 Hauteur Filtrante 1,2 m - Ø 1.800 - 76 m3/h - sortie 200 mm
18227 Hauteur Filtrante 1,5 m - Ø 1.050 - 25 m3/h - sortie 110 mm
18228 Hauteur Filtrante 1,5 m - Ø 1.200 - 33 m3/h - sortie 125 mm
18229 Hauteur Filtrante 1,5 m - Ø 1.400 - 46 m3/h - sortie 140 mm
18230 Hauteur Filtrante 1,5 m - Ø 1.600 - 60 m3/h - sortie 160 mm
18231 Hauteur Filtrante 1,5 m - Ø 1.800 - 76 m3/h - sortie 200 mm
18232 Hauteur Filtrante 1,5 m - Ø 2.000 - 94 m3/h - sortie 225 mm
18233 Hauteur Filtrante 1,5 m - Ø 2.350 - 130 m3/h - sortie 250 mm
19335 Hauteur Filtrante 1,2 m - Ø 2.500 - 150 m3/h - sortie 250 mm
19336 Hauteur Filtrante 1,2 m - Ø 3.000 - 212 m3/h - sortie 250 mm
19337 Hauteur Filtrante 1,5 m - Ø 2.500 - 150 m3/h - sortie 250 mm
19338 Hauteur Filtrante 1,5 m - Ø 3.000 - 212 m3/h - sortie 250 mm
23969 Hauteur Filtrante 1,2 m - Ø 2.600 - 160 m3/h - sortie 250 mm
23970 Hauteur Filtrante 1,2 m - Ø 2.800 - 185 m3/h - sortie 250 mm
23971 Hauteur Filtrante 1,5 m - Ø 2.600 - 160 m3/h - sortie 250 mm
23972 Hauteur Filtrante 1,5 m - Ø 2.800 - 185 m3/h - sortie 250 mm
56934 4 kg/cm2 - Ø 2.200 – 114 m3/h – sortie Ø 225 mm 140 mm - Hauteur lit filtrant 1,2 m - Vitesse de filtration 30 m3/h/m
