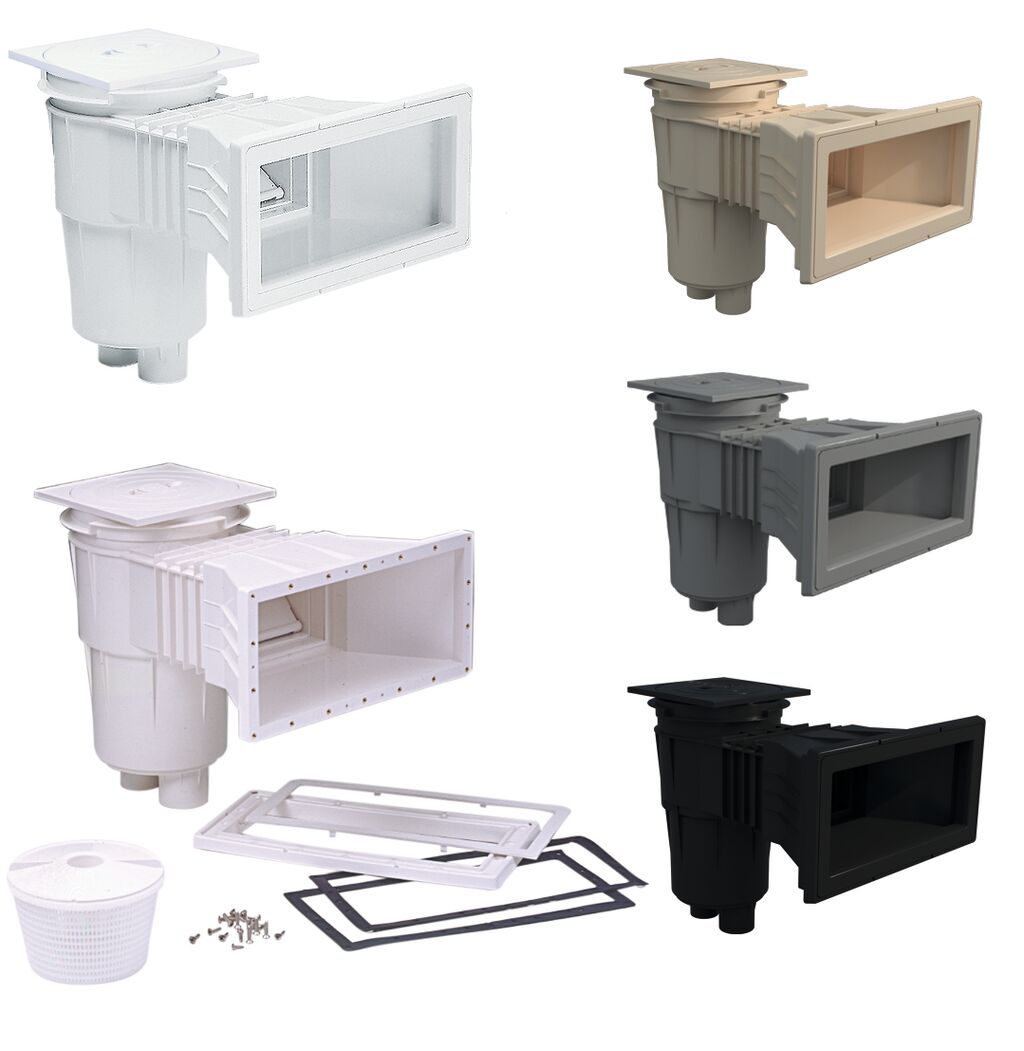

Liner and pref. pool - 17.5 L Skimmers
• All of the components that are exposed in this range of skimmers come with a UV treatment.
• Made of ABS, they come with a weir flap and a flow regulator check valve.
• Bottom suction nozzle connection: 11/2" inner thread, 2" outer thread.
• Simultaneous connection to the main drain: Ø 50 mm inner wall.
• Overflow connection: Ø 40 mm.
• Leaf trap.
• Recommended flow rate: 7.5 m3/h.
• It is recommended that one skimmer be installed for every 25 m2 of water surface area.
• All skimmers come in two different models: the model with inserts and the PARKER model, which is supplied with self-tapping screws.

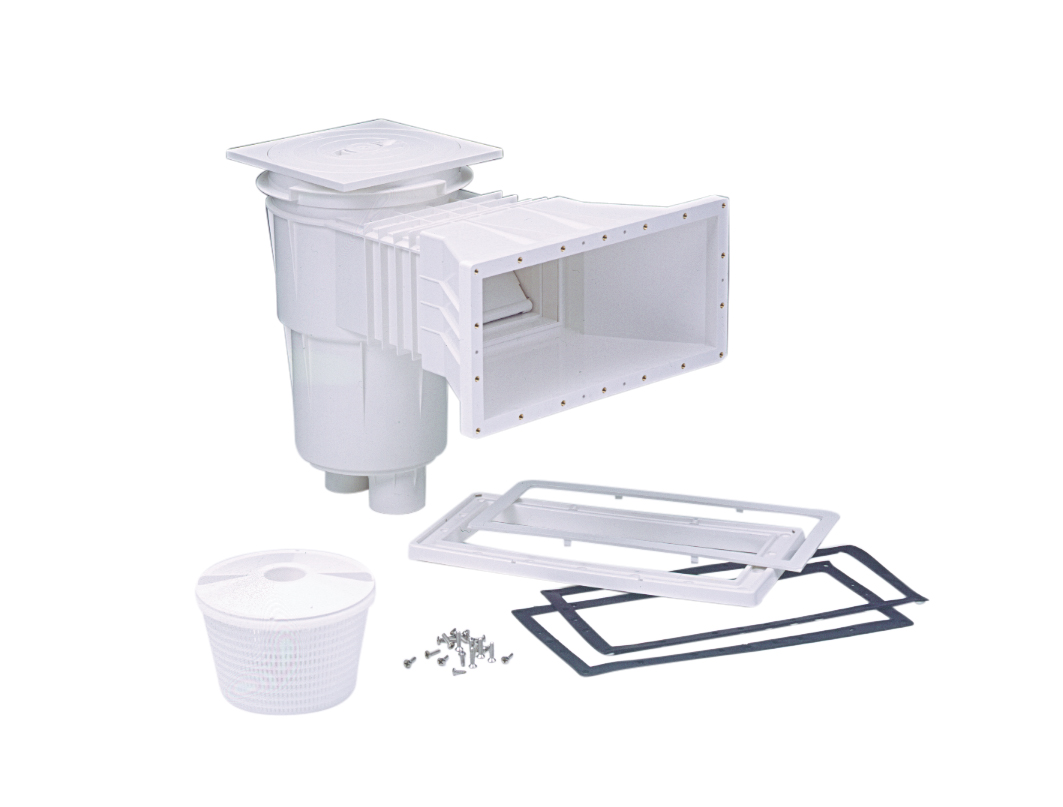

Supplied with adhesive gaskets, flange and screws.

CODE Beschreibung Ersatzteile
11311 SKIMMER 17,5L PP EINLASS ERWEITERT ABDECKUNG QUADRATISCH Siehe Ersatzteile
11311CL129 SKIMMER MIT ERWEITERTEM AUSLASS UND QUADRATISCHEM DECKEL Hellgrau
11311CL144 SKIMMER MIT ERWEITERTEM AUSLASS UND QUADRATISCHEM DECKEL Anthrazit
