Description

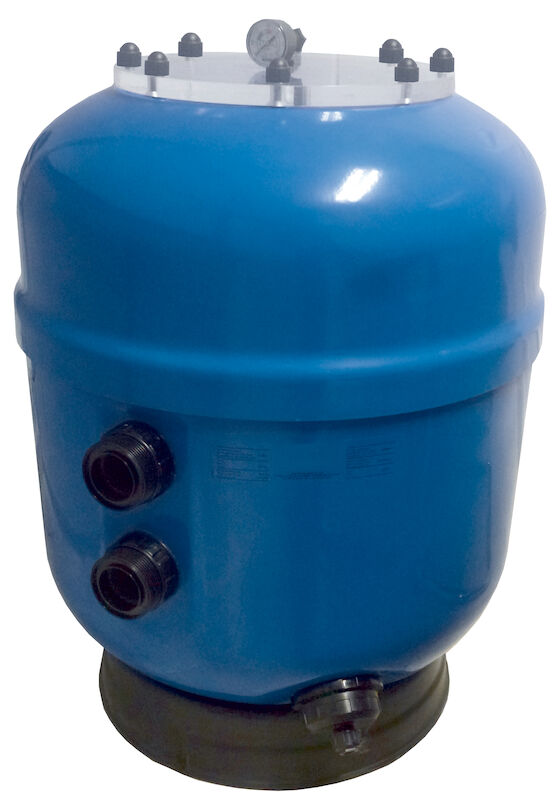

Filters manufactured in fibreglass and polyester resin Complies with filtration requirements as per standard EN 16713-1. Sand and glass compatible.
• Filter colour (Ral5015)
• 1/4" purge valve.
• 2 1/2" sand discharge
• Polyester or methacrylate cover with screws.
• Diameter of top access: 285 mm.
• Maximum pressure: 2.5 bar.

CODE Description Spare Parts
64991 With methacrylate cover 15,000 l/h Ø 600 mm output 2” See Spare Parts
64992 22 000 l/h Ø 750 mm sorties 2” Pro with methacrylate cover See Spare Parts
64993 With methacrylate cover 30,000 l/h Ø 900 mm output 21/2” See Spare Parts
64987 With polyester cover 15,000 l/h Ø 600 mm output 2” See Spare Parts
64988 9500 l/h Ø 500 mm output 1½” Pro Long version with methacrylate cover See Spare Parts
64989 30000 l/h Ø 900 mm output 2½” With polyester cover See Spare Parts
64990 9500 l/h Ø 500 mm output 1½” Pro with methacrylate cover See Spare Parts
64986 9500 l/h Ø 500 mm output 1½” With polyester cover See Spare Parts
Show less

Document downloads

Product data sheet

  • Product Data Sheet Europe Pro filters EN ES
    View

Manual

  • Generic Manual EN ES FR +
    View
Show less
